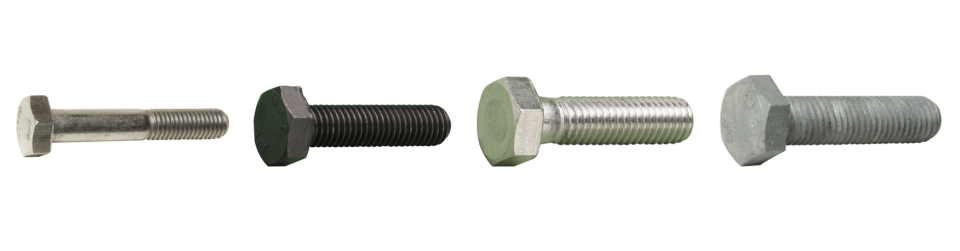

Hexagon head set screws, often referred to as "hex setscrews," are a cornerstone of industrial, commercial, and engineering fastening applications. Known for their high strength, precision, and reliability, these screws are used in a variety of demanding environments, from securing heavy machinery to assembling intricate structures. This comprehensive guide delves into the essential details about hexagon head set screws, including their grades, finishes, applications, and benefits.
What Are Hexagon Head Set Screws?
Hexagon head set screws are threaded fasteners with a hexagonal head, designed to deliver secure and reliable connections. They are fully threaded, making them suitable for clamping components together tightly or securing parts within a system. These versatile fasteners are commonly used in situations where durability and precision are paramount, making them an essential tool for construction, automotive, marine, and industrial projects.
Key Features:
- Hexagonal Head: Enables easy tightening using standard tools like wrenches or spanners.
- Fully Threaded: Provides maximum holding power for secure connections.
- Durable Construction: Engineered to perform under heavy loads and in harsh environments.
Whether you’re working on a construction site, repairing machinery, or assembling critical infrastructure, hexagon head set screws offer the strength and reliability needed to get the job done.
Grades of Hexagon Head Set Screws
The performance of hexagon head set screws is heavily influenced by their grade, which determines their tensile strength and suitability for different applications. Two of the most commonly used grades are Grade 8.8 and Grade 10.9.
1. Grade 8.8 Hexagon Head Set Screws
Grade 8.8 hexagon head set screws are considered high-tensile fasteners, capable of withstanding significant stress and loads. These screws are made from medium-carbon steel and are typically quenched and tempered to enhance their strength and durability.
- Tensile Strength: Approximately 800 MPa (megapascals).
-
Applications:
- Securing medium-weight machinery and equipment.
- Construction and structural assemblies.
- Automotive components where moderate strength is required.
Grade 8.8 screws strike a balance between strength and affordability, making them a versatile choice for general-purpose applications.
Shop Grade 8.8 Hexagon Set Screws:
Hex Head Set Screw, High Tensile, Grade 8.8 (Galvanised) DIN 933
Hex Head Set Screw, High Tensile, Grade 8.8 (Zinc Plated) DIN 933
Hex Head Set Screw, High Tensile, Grade 8.8 (Self Colour) DIN 933
2. Grade 10.9 Hexagon Head Set Screws
Grade 10.9 hexagon head set screws are even stronger than their Grade 8.8 counterparts. Made from high-carbon steel, these screws are also heat-treated to achieve higher tensile strength and durability.
- Tensile Strength: Approximately 1,000 MPa.
-
Applications:
- Heavy-duty machinery and industrial equipment.
- Structural steel connections.
- High-stress automotive applications, such as engine mounts.
These screws are ideal for projects requiring superior strength and performance in demanding environments.
Shop Grade 10.9 Hexagon Head Set Screws:
Hex Head Set Screw, High Tensile, Grade 10.9 (Self Colour) DIN 933
Hex Head Set Screw, High Tensile, Grade 10.9 (Zinc Plated) DIN 933
Finishes of Hexagon Head Set Screws
Hexagon head set screws come in a variety of finishes, each tailored to specific environmental and functional requirements. The finish not only enhances the screw's aesthetic appeal but also protects it against corrosion and wear. Below are the most commonly used finishes:
1. Self Colour
Self-colour hex set screws are untreated and uncoated, retaining the natural appearance of the steel. While they are cost-effective, they lack corrosion resistance, making them suitable for indoor use or environments where exposure to moisture is minimal.
-
Advantages:
- Economical option.
- Suitable for dry and controlled environments.
-
Applications:
- Indoor machinery assembly.
- Non-exposed structural connections.
Shop Self Colour:
Hex Head Set Screw, High Tensile, Grade 10.9 (Self Colour) DIN 933
Hex Head Set Screw, High Tensile, Grade 8.8 (Self Colour) DIN 933
2. Zinc Plated
Zinc plating adds a thin layer of zinc to the surface of the screw, providing moderate corrosion resistance. This finish is commonly used for screws exposed to light moisture or indoor environments.
-
Advantages:
- Improved resistance to rust and oxidation.
- Shiny, polished appearance.
-
Applications:
- Indoor and light outdoor projects.
- Furniture assembly.
- Automotive interiors.
Shop Zinc Plated:
Hex Head Set Screw, High Tensile, Grade 10.9 (Zinc Plated) DIN 933
Hex Head Set Screw, High Tensile, Grade 8.8 (Zinc Plated) DIN 933
3. Galvanised
Galvanised hex set screws feature a thicker layer of zinc, applied through a hot-dip process. This finish offers superior corrosion resistance, making it ideal for outdoor and marine applications.
-
Advantages:
- High resistance to rust and environmental wear.
- Suitable for harsh outdoor conditions.
-
Applications:
- Fencing and outdoor structures.
- Marine and coastal environments.
- Heavy-duty construction projects.
Shop Galvanised:
Hex Head Set, High Tensile, Grade 8.8 (Galvanised) DIN 933
4. Stainless Steel
Stainless steel hex set screws are made from corrosion-resistant alloys, such as A2 or A4 stainless steel. They provide exceptional durability and resistance to rust, even in extreme conditions like marine or chemical environments.
-
Advantages:
- Maximum corrosion resistance.
- Long-lasting and low maintenance.
-
Applications:
- Marine and offshore industries.
- Chemical processing plants.
- Outdoor installations in humid climates.
Shop Stainless Steel:
Hex Head Set Screw (A2 Stainless) DIN 933
Hex Head Setscrew (A4 Stainless) DIN 933
Advantages of Hexagon Head Set Screws
Hexagon head set screws are widely preferred for a variety of reasons. Their unique design and robust construction offer the following benefits:
-
High Strength and Durability
Both Grade 8.8 and Grade 10.9 screws provide excellent tensile strength, ensuring reliable performance under heavy loads. -
Ease of Installation
The hexagonal head allows for easy tightening and loosening using standard tools. This makes installation quick and efficient, even in confined spaces. -
Corrosion Resistance
Finishes like zinc plating, galvanisation, and stainless steel ensure long-lasting performance, even in corrosive environments. -
Versatile Applications
Suitable for a wide range of industries, including construction, automotive, marine, and engineering. -
Cost-Effective Solutions
Available in various grades and finishes, hex set screws can be tailored to meet budgetary and project-specific requirements.
Applications of Hexagon Head Set Screws
Hexagon head set screws are a go-to choice for numerous industrial, commercial, and residential applications. Below are some of the most common uses:
1. Industrial Applications
Hex set screws are widely used in industrial settings for securing machinery, equipment, and structural components. Their high strength ensures stability and safety in demanding environments.
- Fastening conveyor belts and motors.
- Securing heavy-duty machinery to concrete bases.
- Assembling steel frameworks.
2. Automotive Applications
In the automotive industry, hex set screws are used to assemble critical components, ensuring safety and reliability.
- Engine and transmission mounts.
- Securing suspension systems.
- Fastening body panels and frames.
3. Construction Applications
Hex set screws play a vital role in construction projects, providing secure connections in steel and concrete structures.
- Joining steel beams and columns.
- Securing fencing and gates.
- Assembling scaffolding and temporary structures.
4. Marine and Chemical Applications
Stainless steel hex set screws are the preferred choice for marine and chemical environments due to their corrosion resistance.
- Fastening equipment on ships and offshore platforms.
- Securing components in chemical processing plants.
- Assembling outdoor structures in coastal regions.
5. DIY and Home Improvement
Hex set screws are also used in DIY projects and home improvement tasks, thanks to their ease of use and availability in various finishes.
- Assembling furniture and fixtures.
- Securing brackets and shelves.
- Building outdoor decks and fences.
How to Choose the Right Hexagon Head Set Screw
Selecting the right hex set screw for your project involves considering several factors:
-
Grade
Choose Grade 8.8 for general-purpose applications and Grade 10.9 for heavy-duty or high-stress projects. -
Finish
- Opt for zinc-plated screws for indoor use.
- Select galvanised or stainless steel screws for outdoor or corrosive environments.
-
Size and Length
Ensure the screw size matches the material thickness and load requirements. -
Environmental Conditions
Consider the level of moisture, humidity, and exposure to chemicals when choosing the finish.
