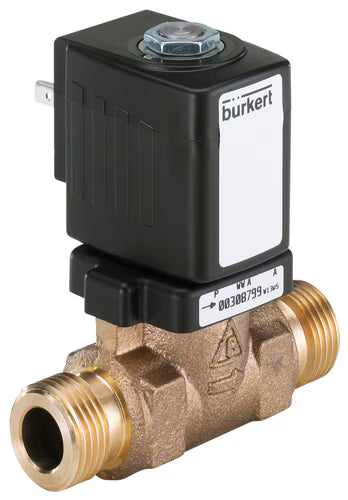

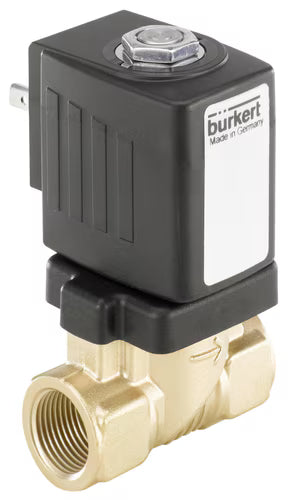

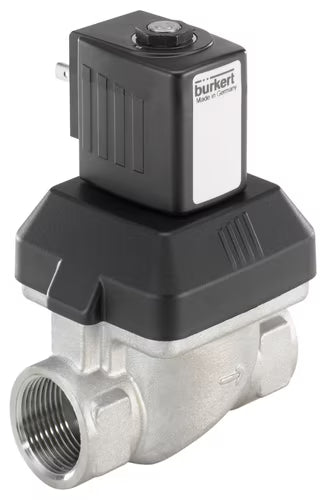

Burkert - Type 6213 - Servo-assisted 2/2-way diaphragm valve

This is a non-stocked item, please call +44 (0)113 2853737 or email sales@frasar.co.uk for price and availability.

The Burkert Type 6213 EV is a servo-assisted diaphragm valve. The spring coupling of the diaphragm supports the opening process in the valve. In its standard variant, the valve is suitable for deployment with liquids. A minimum differential pressure is required for full opening. For gas and vacuum applications, a special variant is available (HP00) that opens the valve without differential pressure.

Various diaphragm materials are available depending on the actual application. The body is is available in brass, stainless steel and gunmetal. For other markets, dezincification-resistant brass is available. To reduce electrical power consumption during operation, coils with integrated Kick-and-Drop (KD) electronics featuring double coil technology are available.

Features:

Servo-assisted diaphragm valve with nominal diameter of up to DN 40
Spring coupled diaphragm opens without differential pressure
Damped design for low noise
High flow rate with compact design
Energy-saving double coil technology with kick and drop variant

For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.

Can be combined with:

Type 2518 - Cable plug, form A according to DIN EN 175301-803

Type 1087 - Timer, form A according to DIN EN 175301-803

Type 2509 - Cable plug, form A according to DIN EN 175301-803
