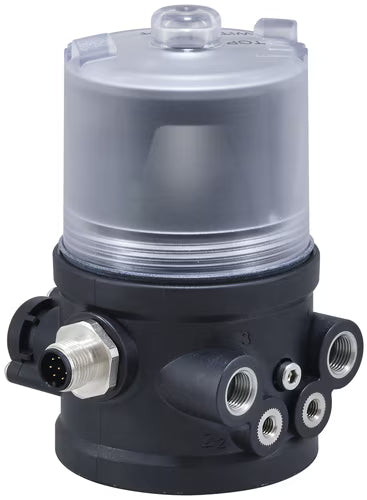

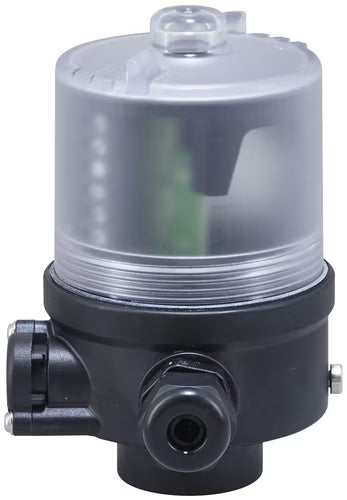

Burkert Type 8697 - Pneumatic control unit for decentralised automation of process valves ELEMENT

This is a non-stocked item, please call +44 (0)113 2853737 or email sales@frasar.co.uk for price and availability.

The Burkert Type 8697 pneumatic control unit is designed for decentralised automation of ELEMENT Type 21xx pneumatic process valves. Mechanical or inductive limit switches record the valve position. The integrated pilot valve controls single-acting actuators. The design of the control unit and the actuator permits an integrated pilot air duct without external piping. As well as the electrical position feedback, the device status is displayed by LEDs on the pneumatic control unit itself.

The housing is easy to clean and features proven IP protection and chemically resistant materials for use in hygienic processing in the food, beverage and pharmaceutical industries. Combined with Bürkert ELEMENT actuators, the pneumatic actuating system enables spring chamber aeration that avoids actuator chamber contamination from the environment.

Features:

- Compact design
- Integrated pilot valve with manual override
- Integrated pilot air duct in the actuator
- Automatic end position feedback setting
- With ATEX II cat. 3G/D and cat. 2G/D approval

For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.

Can be combined with:

Type 2100 - Pneumatically operated 2/2-way angle seat valve ELEMENT for decentralized automation

Type 2101 - Pneumatically operated 2/2-way globe valve ELEMENT for decentralised automation

Type 2103 - 2/2-way diaphragm valve with pneumatic stainless steel actuator (Type ELEMENT) for decentralised automation

Type 2106 - Pneumatically operated 3/2-way seat valve ELEMENT for decentralized automation

Type 2000 - Pneumatically actuated 2/2-way angle seat valve CLASSIC

Type 2012 - Pneumatically operated 2/2-way globe valve CLASSIC

Type 2031 - 2/2-way diaphragm valve with pneumatic plastic actuator (Type CLASSIC)
