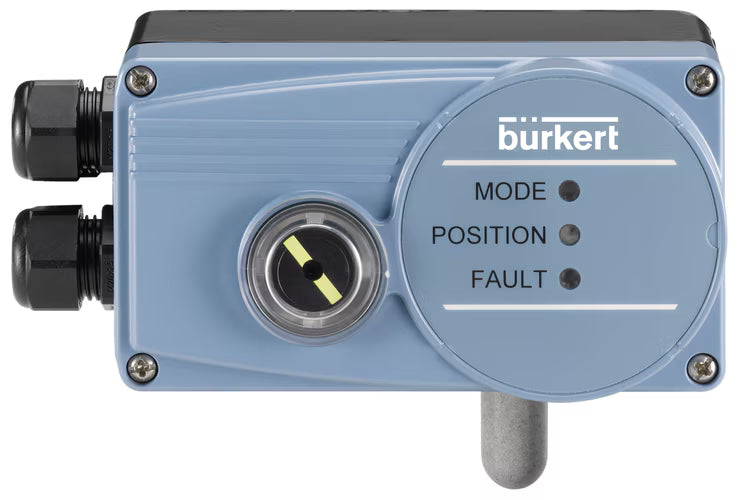

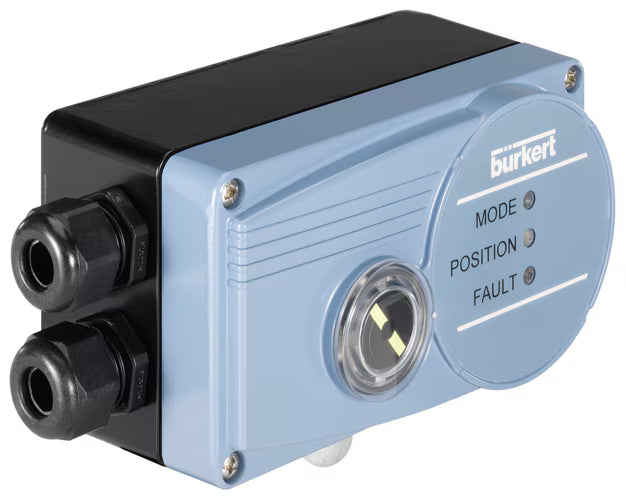

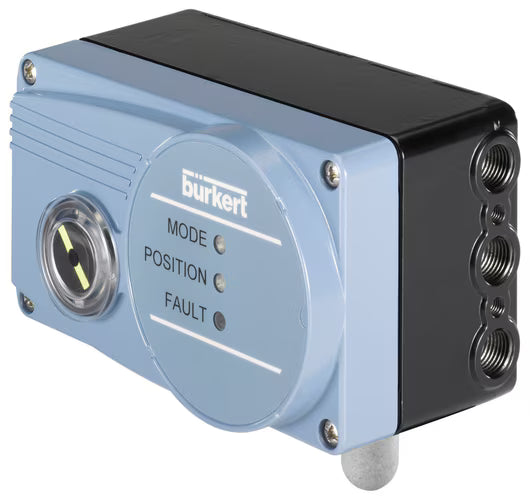

Burkert - Type 8791 - SideCONTROL digital electropneumatic positioner

This is a non-stocked item, please call +44 (0)113 2853737 or email sales@frasar.co.uk for price and availability.

The Burkert Type 8791 is a robust and compact positioner designed for mounting on linear and rotary actuators with standardisation according to IEC 65034-6-1 or VDI/VDE 3845 (IEC 60534-6-2). The variant with remote position sensor can also be used for closed-loop control of Bürkert process control valves. The set-point value setting default for the SideCONTROL digital electropneumatic positioner occurs via standard signals 4 to 20 mA and/or via bus as an option. A digital input and optional analogue feedback are also available.

The valve opening is qualitatively signalled via a mechanical display element and the device status, via 3 coloured LEDs. All operating elements are located inside the housing. Start-up is performed automatically and the following functions are enabled directly on the device via DIP switch: sealing threshold, inversion of set point signal direction, characteristic selection, manual/automatic operating state switchover.

Additional options for configuration and parametrising, such as the linearization of the operating characteristic with the aid of a freely programmable correction characteristic, are available using communication software. The pneumatic actuating system can be used equally for single-acting and double-acting actuators. It is characterised by a defined safety response in the event of the failure of the electrical or pneumatic auxiliary power and possesses an enormous air capacity range at pressure supplies up to 7 bar.

Features:

- Compact and robust design
- Easy start-up using X.TUNE function
- Integrated diagnostic functions for valve monitoring
- Dynamic actuating system with no air consumption in controlled state
- IO-Link port class A & B, AS-Interface or Bürkert-Systembus (büS)

For selecting the correct product please refer to the technical data, images and notes for proper use according to the data sheet.

Can be combined with:

Type 8805 - Ball valve / Butterfly valve with pneumatic rotary actuator

Type 2051 - Pneumatic rotary actuator

Type 8798 - Remote sensor for pneumatically actuated process valves

Type 2301 - Pneumatically operated 2-way globe control valve

Type 2300 - Pneumatically operated 2-way angle seat control valve ELEMENT

Type 2103 - 2/2-way diaphragm valve with pneumatic stainless steel actuator (Type ELEMENT) for decentralised automation

Type BUPLUS - Service, Maintenance and Commissioning
