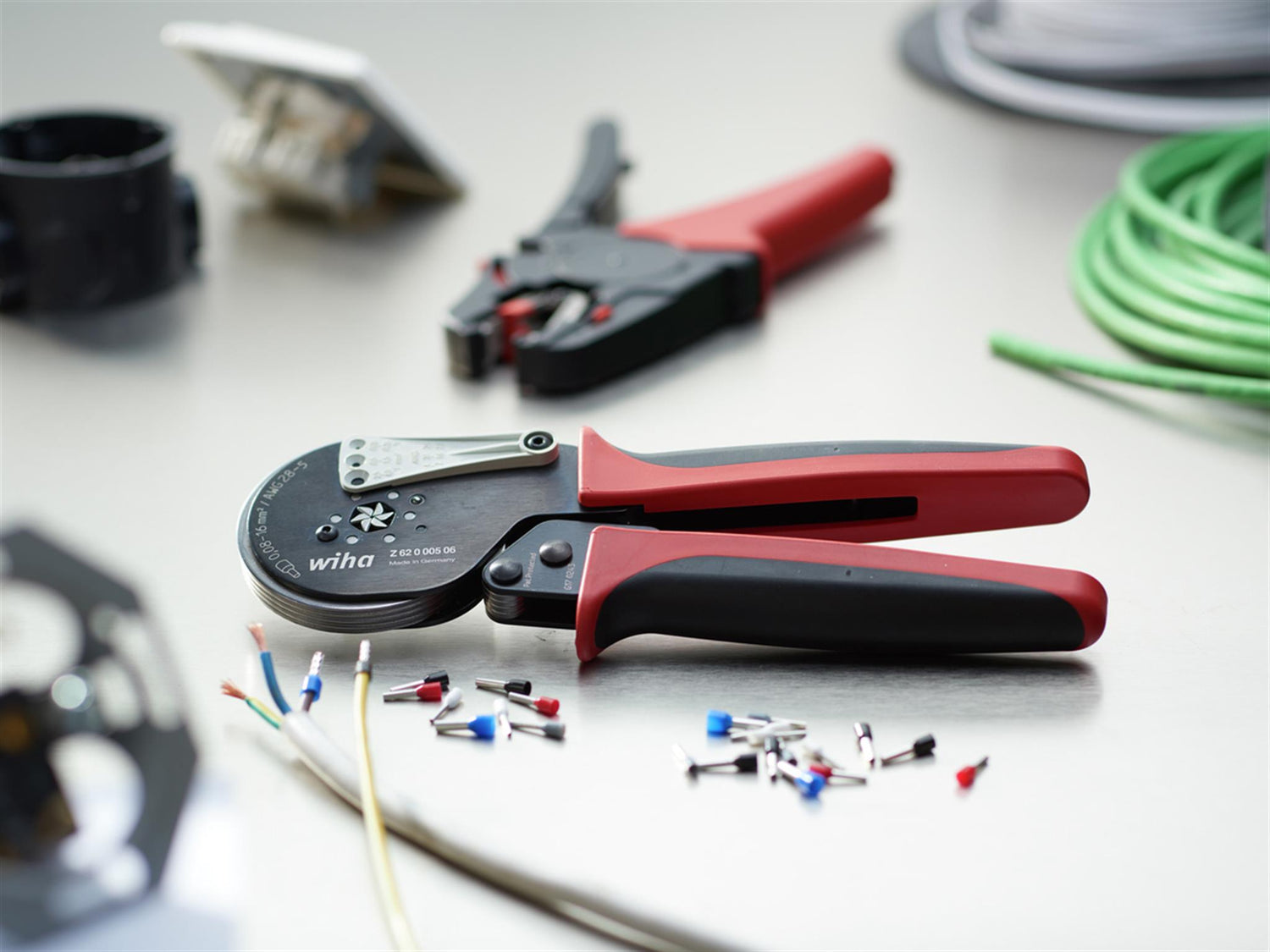

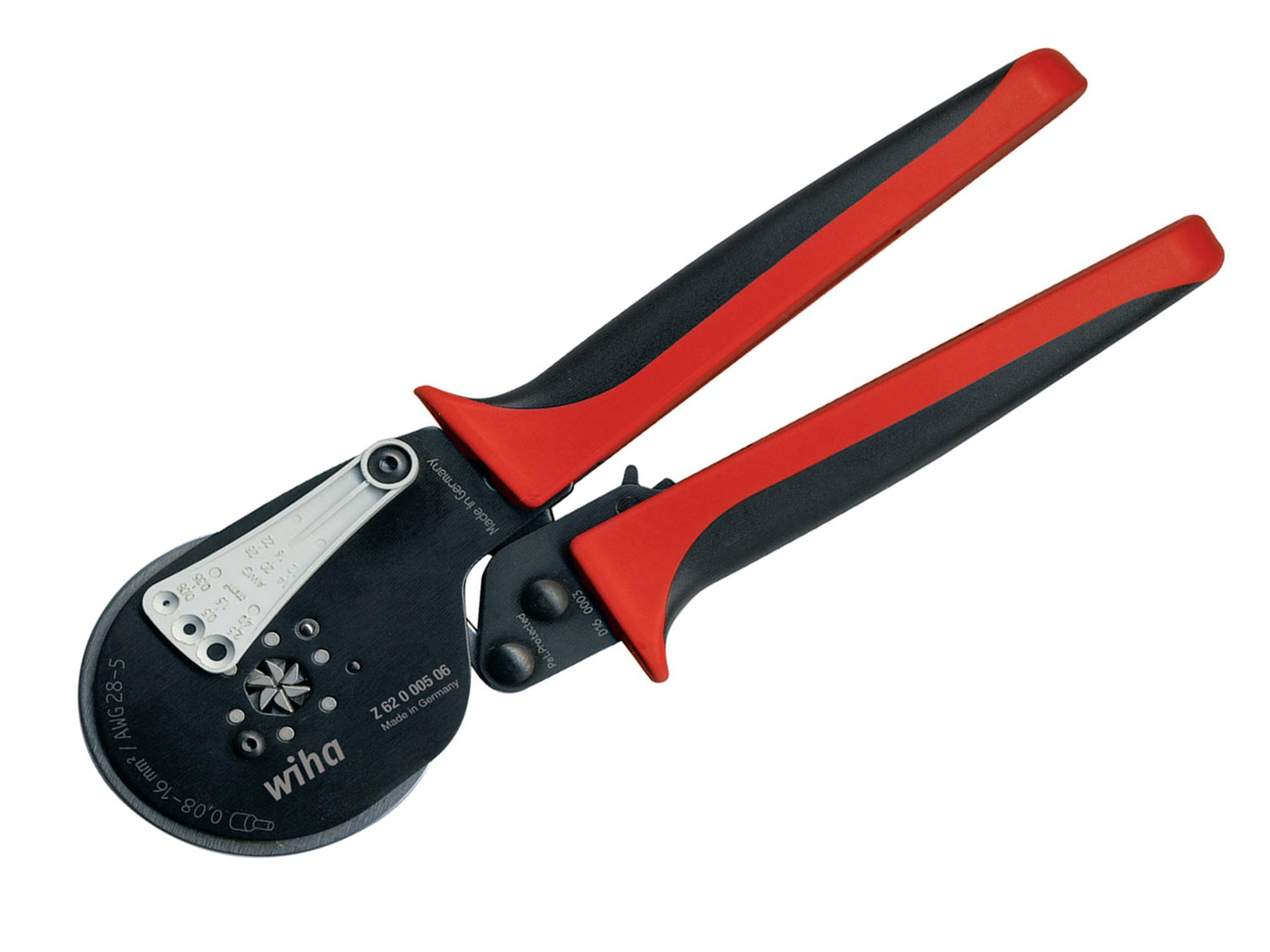

Wiha Automatic Crimp Tool

This Wiha Automatic Crimp Tool is for processing of wire-end sleeves with and without isolating collar according to DIN 46228, EN 50027. With a wide crimping range between 0.08 and 16 mm², they conveniently combine two crimping pliers in a single tool.
Hex crimping; eliminates unnecessary cable/wire-end sleeve waste and prevents small wire-end sleeves from snagging. The feed also provides process safety by preventing the plastic cover from being crimped. Elastic, impact-cushioning plastic handles guarantee comfortable, fatigue-free work. An integrated lever ensures the crimping process can be stopped manually at any time.

Specifications:

Crimping Range: Empty 0.08-16mm², Twin up to 10mm².
Area Stripped (Min. - Max.) 28-5 AWG.
Overall Length: 210mm.
